TRIAX Sample Environments

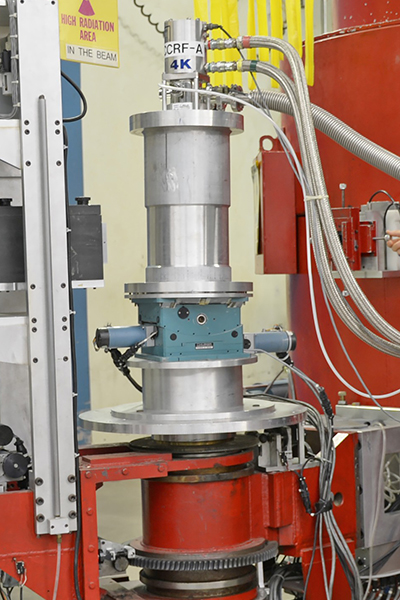

CCRF - Cryofurnace
- Advanced Research Systems DE204 closed-cycle cryocoolerÂ
- Bottom loading system with sample in vacuum or He filled exchange gas can
- Equipped with furnace interface for variable temperature control from 5K to 700K

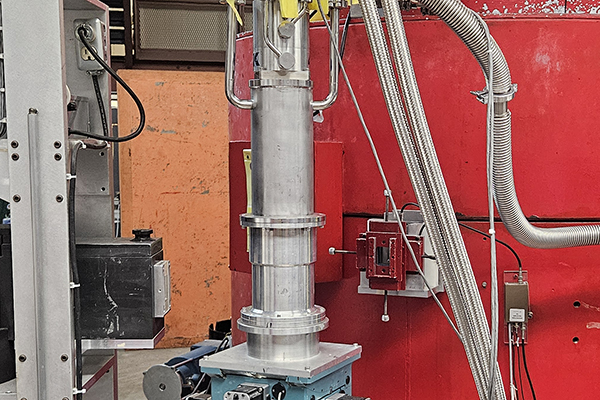

4K Displex
- Advanced Research Systems DE204 closed-cycle cryocoolerÂ
- Bottom loading system with sample in vacuum or He filled exchange gas can
- Variable temperature from room temperature down to 4K

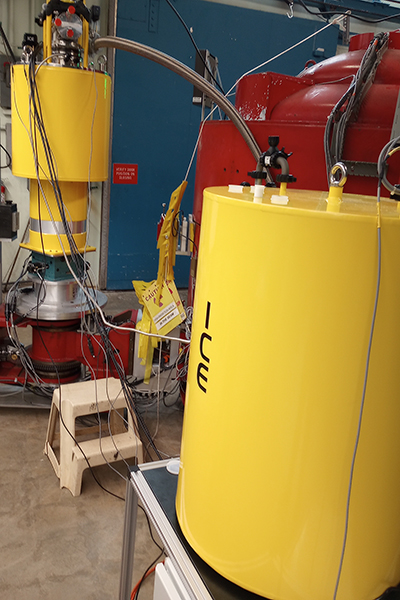

ICE Oxford Dry 1.5K Beamline Cryostat
- Top-loading, closed-cycle refrigerator with continuous operation at 1.5K
- He3 insert with sorption pump option for temperatures down to 300 mK
- Sample in variable temperature insert, vacuum or helium gas
